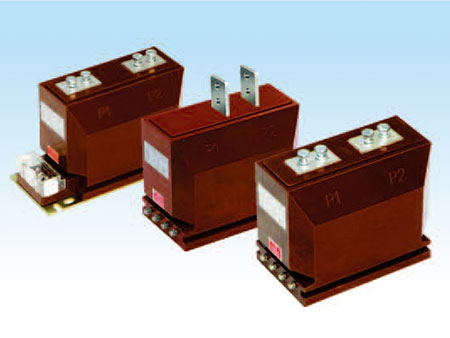

LZZBJ9-10A1G、B1、C1Type current transformer
LZZBJ9-10A1G、B1、C1Type current transformer

 2、Technical data

Rated primary current(A) Accuracy classes combination Rated secondary output(VA) 1s thermal current(kA) Rated dynamic current(kA)
0.2S(0.2) 0.5S(0.5) 10P10
5

0.2S/10P10

0.5S/10P10

0.2/10P10

0.5/10P10

10 10 15 0.75 1.8
10 1.44 3.6
15 2 5
20 3 7.5
25 4 10
30 5 12.5
40 6.3 15
50 8.1 20
75 16.2 40.5
100 21.6 54
150 36 80
200 45 100
300
400
500 63 130
600
800
1000
1200 80 160
1500
2000
2500

3000
