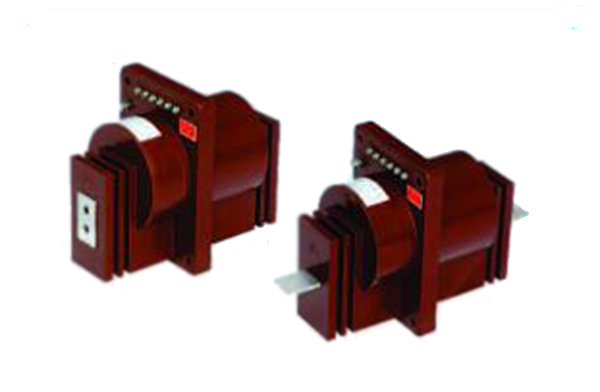

LFZB(J)8-10 A2、B2Type current transformer
LFZB(J)8-10  A2、B2Type current transformer
2、Technical data
Rated primary current(A) Accuracy classes combination Rated secondary output(VA) 1s thermal current(kA) Rated dynamic current(kA)
0.2(S) 0.5(S) 0.5 10P10
10

0.2(S)/0.2(S)

0.2(S)/0.5(S)

0.5(S)/0.5(S)

0.2(S)/5P10

0.5(S)/5P10

10 10 15 15 1.44 36.
15 2 5
20、25 3 7.5
30、40 5 12.5
50、60 10 25
75 16 40
100 20 50
150、200 31.5 78
300、400 40 100
500、600 20 63 150
750、800 80 200
1000 100 250
1200

Rated primary current(A) Accuracy classes combination Rated secondary output(VA) 1s thermal current(kA) Rated dynamic current(kA)
0.2(S) 0.5S 0.5 5P15 5P20
10

0.2(S)/5P

0.5(S)/5P

10 10 15 15 10 1.44 3.6
15 1.5 3.75
20 2 5
25、30 3 7.5
40 5 12.5
50 8.1 20.2
75 10 25
100 16 40
150 20 50
200、250 31.5 78
300、400 40 100
500、600 63 150
750、800 80 200
1000 100 250
1200
