JDZ(X)9-3、6、10Q(G)Type voltage transformer
JDZ(X)9-3、6、10Q(G)Type voltage transformer

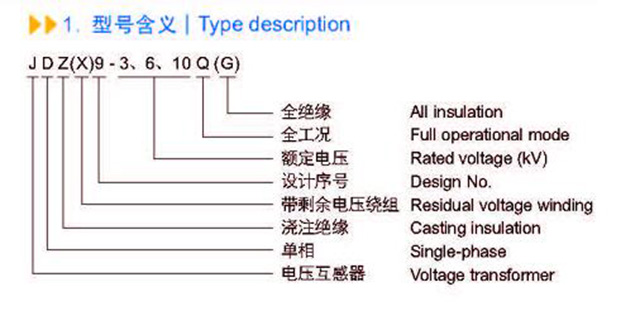

2、Technical data

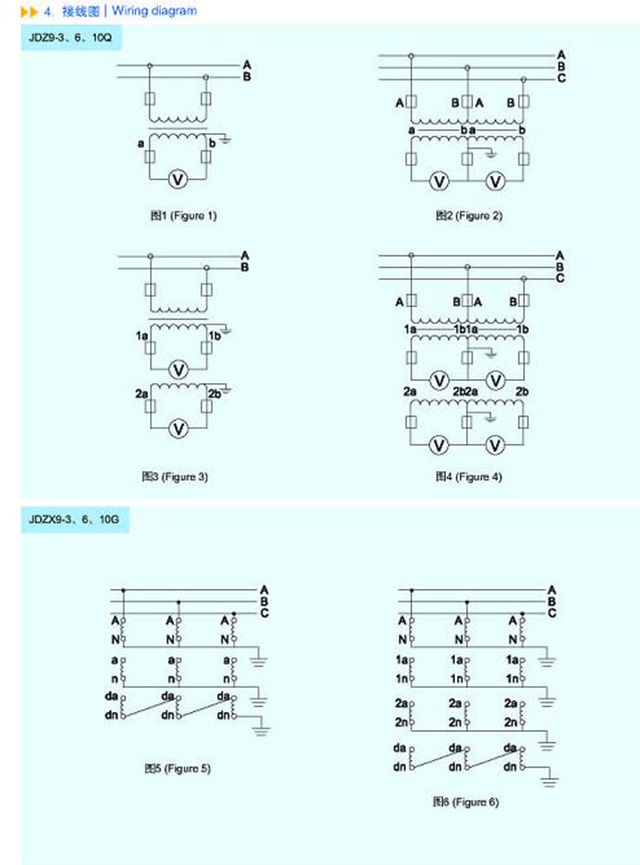

Type Rated voltage ratio(V) Rated secondary output(VA) Max.output(VA) Rated insulation level(kV) Notes Wiring diagram
0.2 0.5 1级 3级 0.2/0.2 0.5/0.5 6P
0.2/0.5
JDZ9-3Q 3000/100 40 100 200 240 / / / 500 3.6/25/40 Same“VKV” Figure1-2
JDZ9-6Q 6000/100 7.2/32/60
JDZ9-10Q 10000/100 12/42/75
JDZ9-10Q 10000/100/100 / / / / 20/20
20/30
30/30 400/400 Figure3-4
JDZX9-3G   30 60 180 500 / / 100 600 3.6/25/40 / Figure5
JDZX9-6G   7.2/32/60
JDZX9-10G   12/42/75
  / / / / 15/15
15/20
40/40 400/400 Figure6
