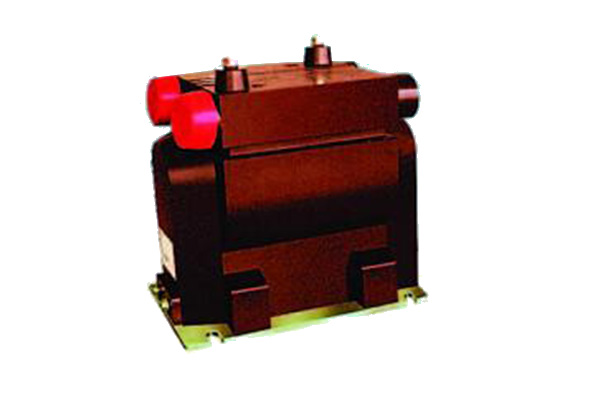

JDZ9-3、6、10R3Type v voltage transformer
JDZ9-3、6、10R3Type v voltage transformer

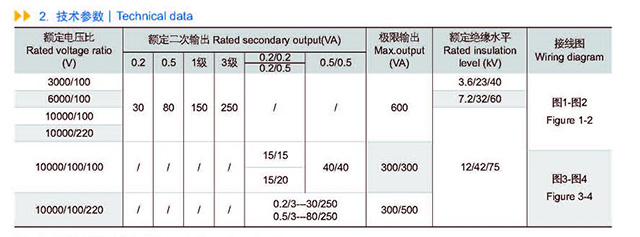

2、Technical data
Rated voltage ratio(V) Rated secondary output(VA) Max.output(VA) Rated insulation level(kV) Wiring diagram
0.2 0.5 1级 3级 0.2/0.2 0.5/0.5
0.2/0.5
3000/100 30 80 150 25 / / 600 3.6/23/40 Figure1-2
6000/100 7.2/32/60
10000/100 12/42/75
10000/220
10000/100/100 / / / / 15/15 40/40 300/300 Figure3-4
15/20
10000/100/220 / / / / 0.2/3---30/250
0.5/3---80/250
300/500
