JDZX12A-3、6、10 JDZ12A-3、6、10R voltage transformer

JDZX12A-3、6、10 JDZ12A-3、6、10R voltage transformer

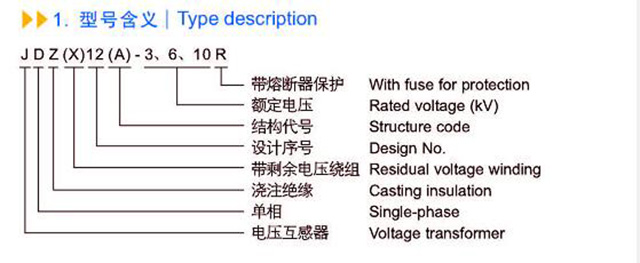

2、Technical data

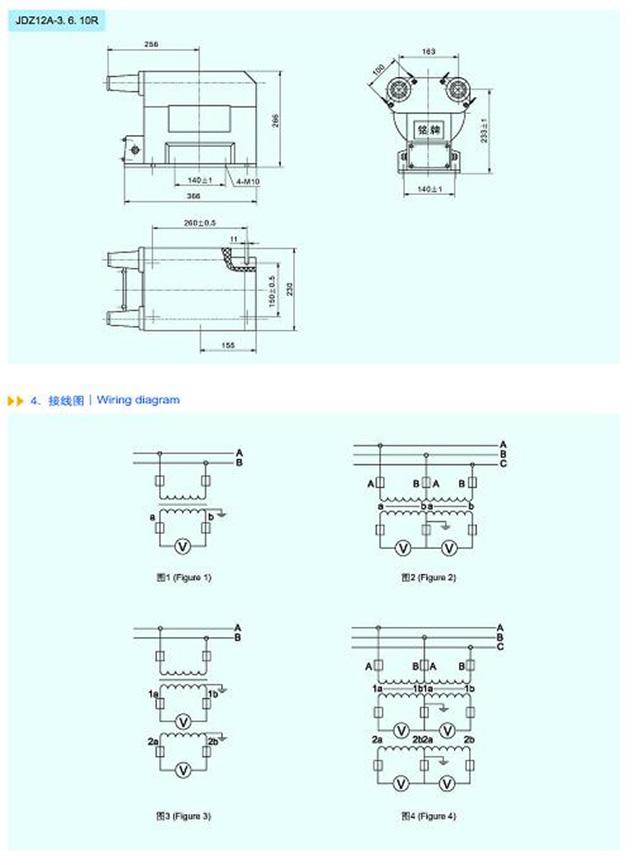

Type	Rated voltage ratio（V）	Rated secondary output（VA）						Max.output（VA）	Rated insulation level（kV）	Wiring diagram
		0.2	0.5	1级	3级	0.2/0.2	0.5/0.5
						0.2/0.5
JDZ12A-3	3000/100	30	90	250	400	/	/	1000	3.6/23/40	Figure1-2
JDZ12A-6	6000/100								7.2/32/60
JDZ12A-10	10000/100								12/42/75
	10000/220
	10000/100/100	/	/	/	/	20/20	50/50	500/500		Figure3-4
						20/30
	10000/100/200	/	/	/	/	0.2/3---30/400 0.5/3---90/400		800/1000
JDZ12A-3R	3000/100	30	90	250	400	/	/	1000	3.6/23/40	Figure1-2
JDZ12A-6R	6000/100								7.2/32/60
JDZ12A-10R	10000/100								12/42/75
	10000/200
	10000/100/100	/	/	/	/	20/20	50/50	500/500		Figure3-4
						20/30
	10000/100/220	/	/	/	/	0.2/3---30/400 0.5/3---90/400		800/1000

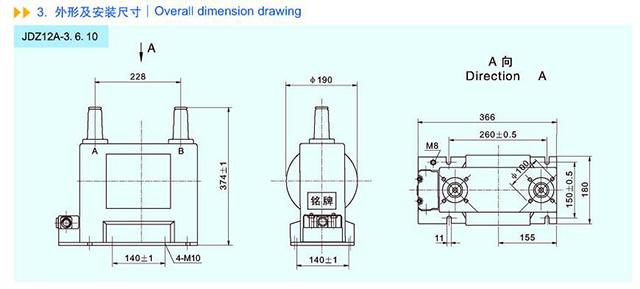

Note：The first Wiring point connection mode：

JDZ12A-3.6.10First wiring point and 200A Amemcan Type elbow ping cooperate.

JDZ12A-3.6.10R10First wiring point and 200A Amemcan Type heavy cabre elbow piug cooperate.
