LZZBJ9-36/250W2G1 type current transformer
LZZBJ9-36/250W2G1 type current transformer

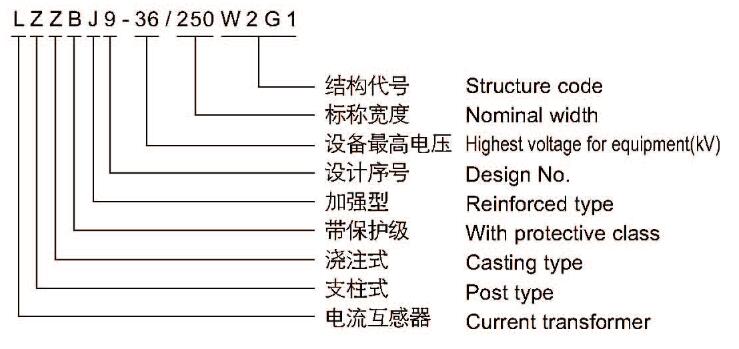

1、Type description



2、Technical data

Rated primary current(A) Accuracy classes combination Rated secondary output(VA) Short-time thermal current(kA/S) Rated dynamic current(kA)
0.2(S) 0.5(S) 5P15 5P20
20-100

0.5(S)/5P15/5P20

0.5(S)/5P15/5P20

10 15 15 15 200lin 50lin
150-200 31.5 80
300-500 31.5/2
600-1250 15 30 15 20 31.5/4
1500-2000 20 40 20 30 40/4 125
2500 20 40 20 20

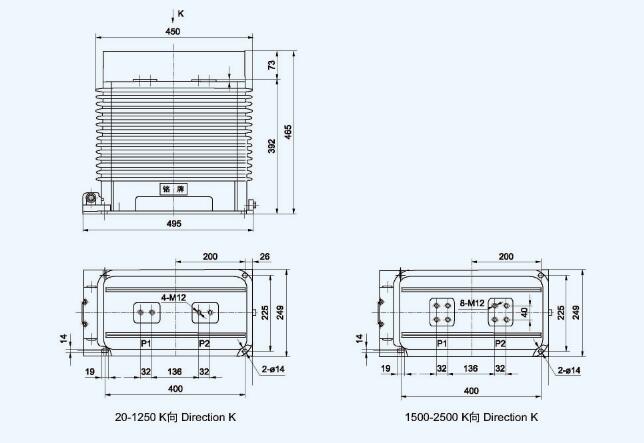

3、Overall dimension drawing
