JDZX9-35 type voltage transformer

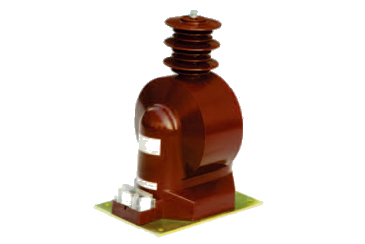

JDZX9-35 type voltage transformer

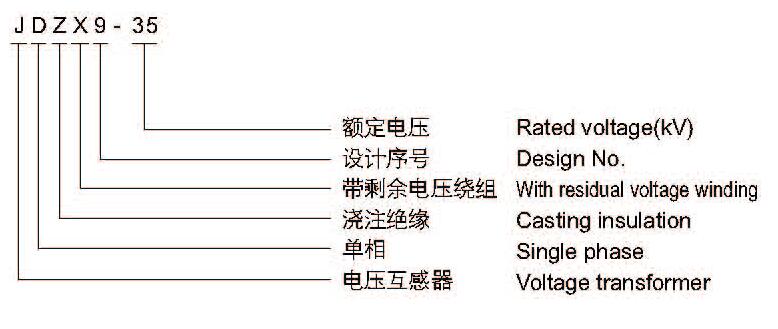

1、Type description

2、Technical data

Rated voltage ratio(V) Rated secondary output(VA) Max.output(VA) Rated insulation level(kV) Notes Wiring diagram
0.2 0.5 1级 3级 0.2/0.2 0.5/0.5 6P(3P)
0.2/0.5
  30 90 180 500 / / 100 600 40.5/95/200 Same“VKI”

Figure1

  / / / / 15/15 45/45 100 300/300 Figure2
15/20

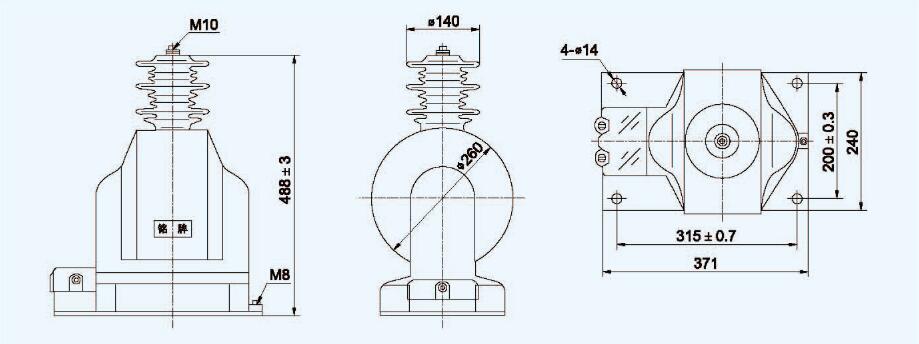

3、Overall dimension drawing

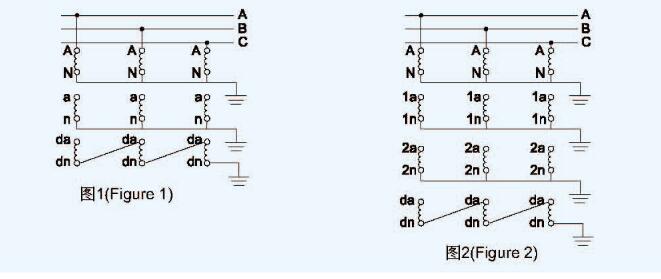

4、Wiring diagram
