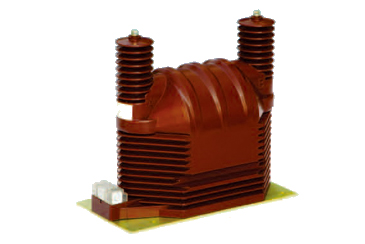

JDZ9-35Q、JDZX9-35G type voltage transformer
JDZ9-35Q、JDZX9-35G type voltage transformer

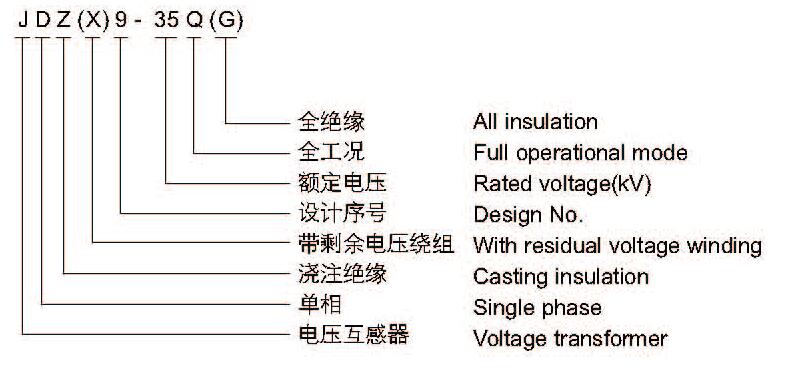

1、Type description



2、Technical data

type Rated voltage ratio(kV) Rated secondary output(VA) Max.output(VA) Rated insulation level(kV) Notes Wiring diagram
0.2 0.5 1级 3级 0.2/0.2 0.5/0.5 6P(3P)
0.2/0.5
JDZ9-35Q 35000/100 60 120 240 600 / 1 / 800 40.5/95/200 Same“VKV” Figure1-2
35000/100/100 / / / / 30/30 40/40 / 500/500 Figure3-4
JDZX9-35G   30 90 180 500 / / 100 600

Figure5

Figure6

  / / / / 15/15 45/45 100 300/300
15/20

3、Overall dimension drawing

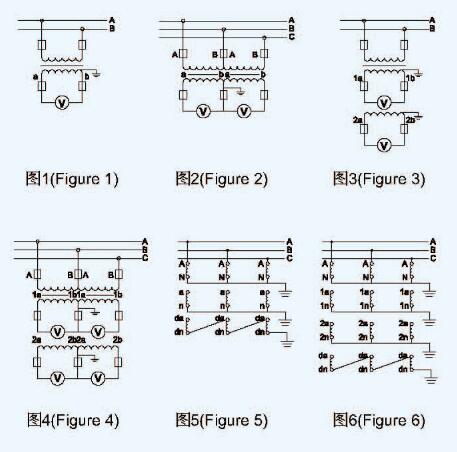

4、Wiring diagram
