JDZX9-3、6、10Q type voltage transformer
JDZX9-3、6、10Q type voltage transformer

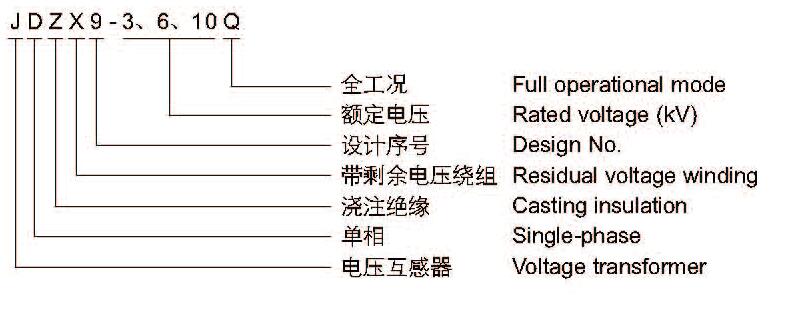

1、Type description



2、Technical data

Rated voltage ratio(V) Rated secondary output(VA) Max.output(VA) Rated insulation level(kV Notes Wiring diagram
0.2 0.5 1级 3级 0.2/0.2
0.2/0.5
0.5/0.5 6P
  30 80 180 500 / / 100 600 3.6/25/40 Same“VKI” Figure1
  7.2/32/60
  12/42/75
  / / / / 15/15 45/45   300/300   Figure2
15/20

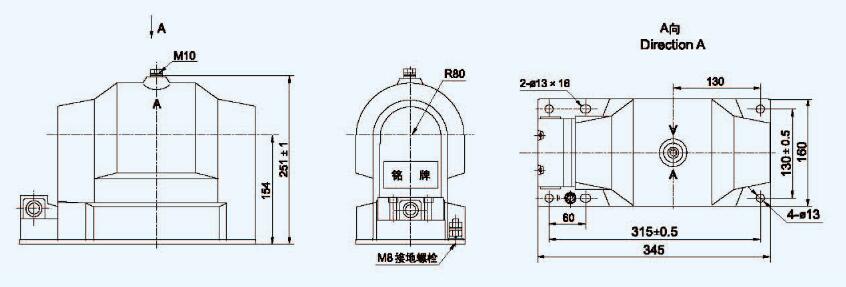

3、Overall dimension drawing

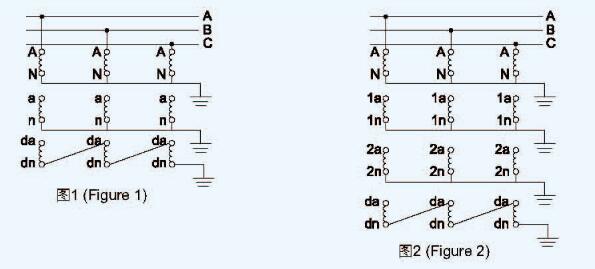

4、Wiring diagram
