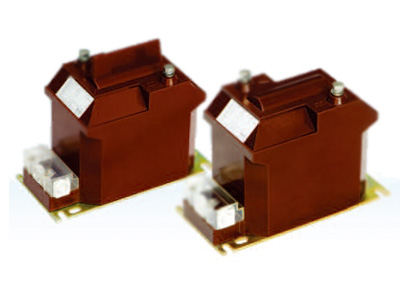

JDZ10-3、6、10(Q)type voltage transformer
JDZ10-3、6、10(Q)type voltage transformer

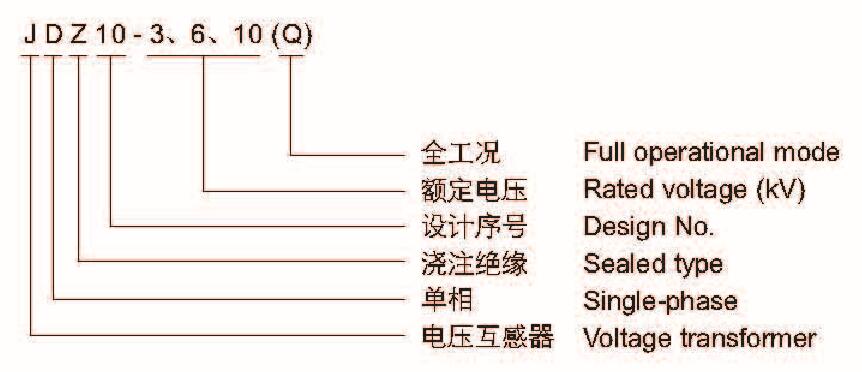

1、Type description



2、Technical data

Rated voltage ratio(V) Rated secondary output(VA) Max.output(VA) Rated insulation level(kV) Notes Wiring diagram
0.2 0.5 1级 3级
3000/100 15 30 60 150 200

3.6/25/40
7.2/32/60
12/42/75

Same“RZL” Figure1-2
6000/100
10000/100

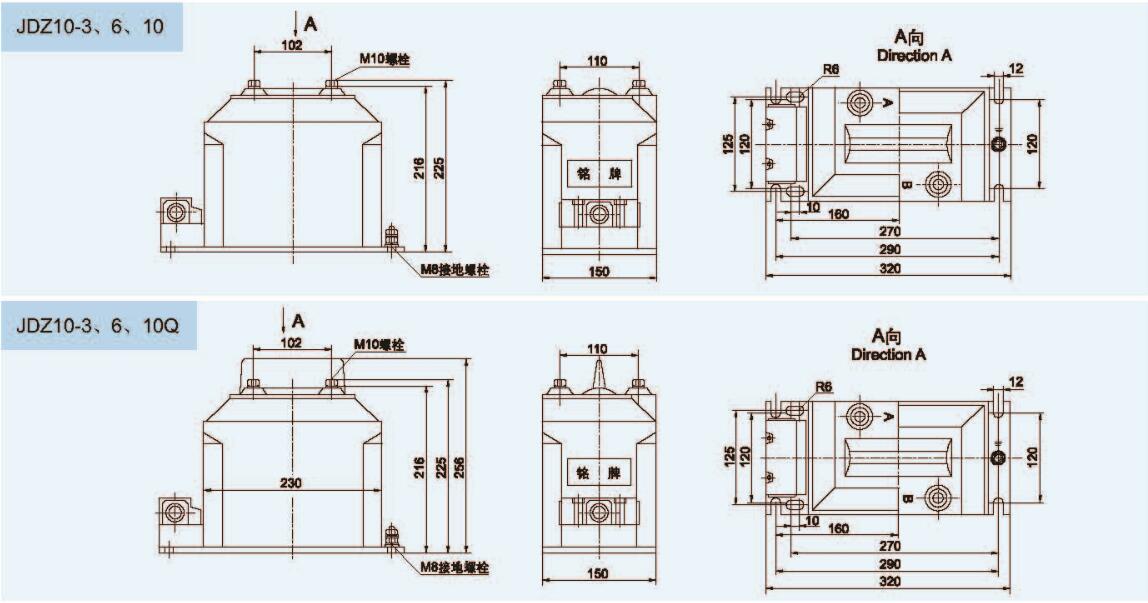

3、Overall dimension drawing

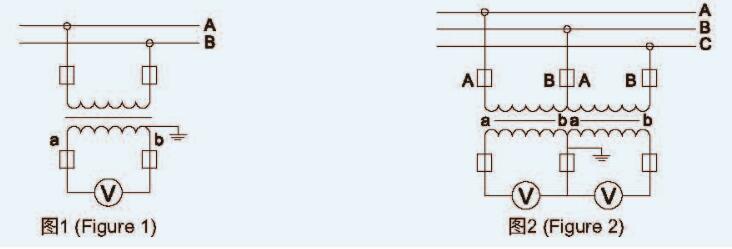

4、Wiring diagram
